Place of Origin:
Xi'an,China
Brand Name:
FHH

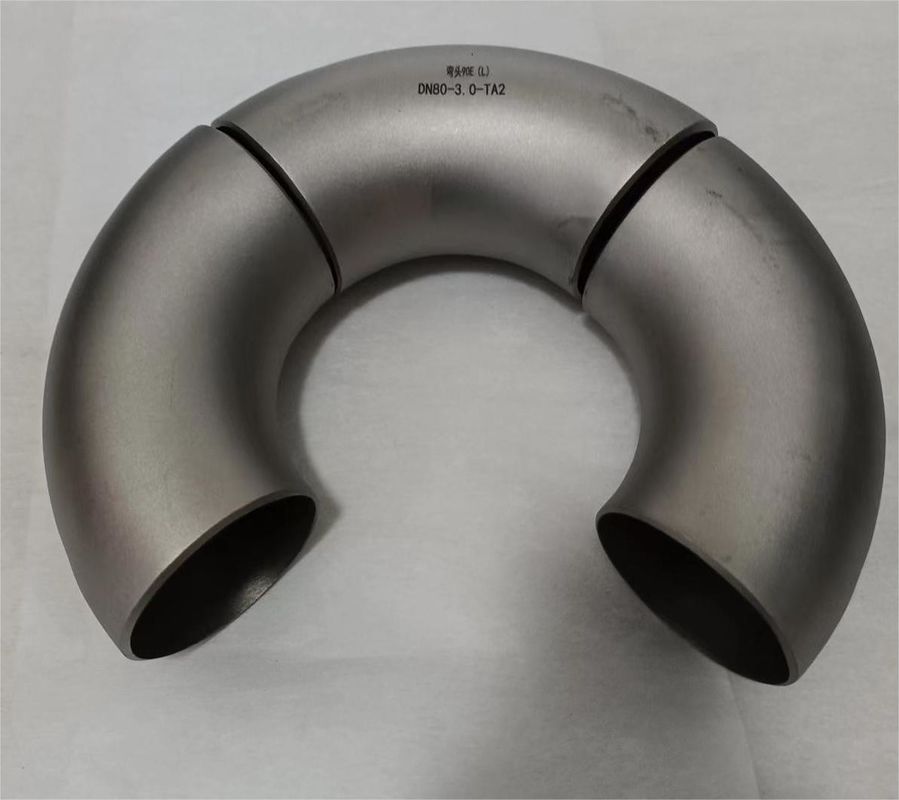

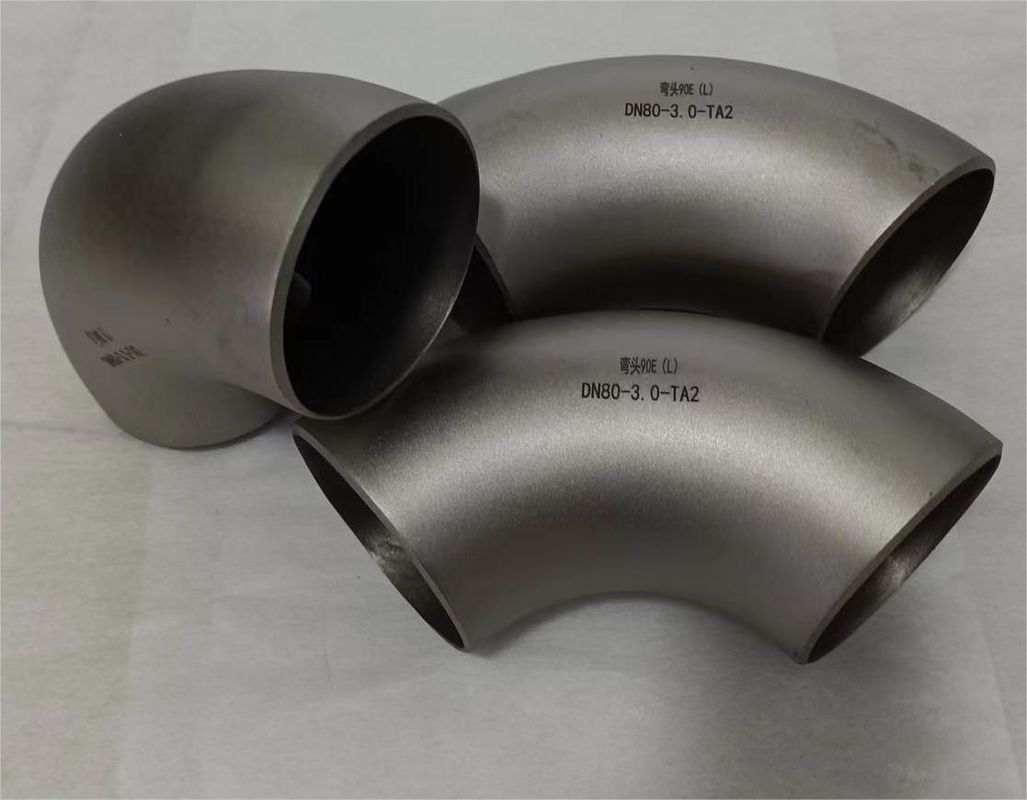

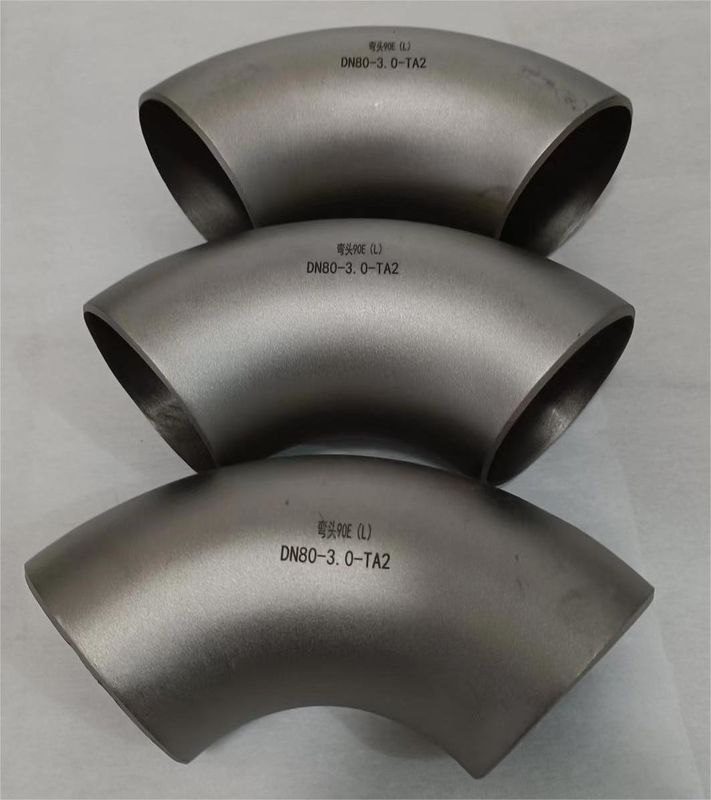

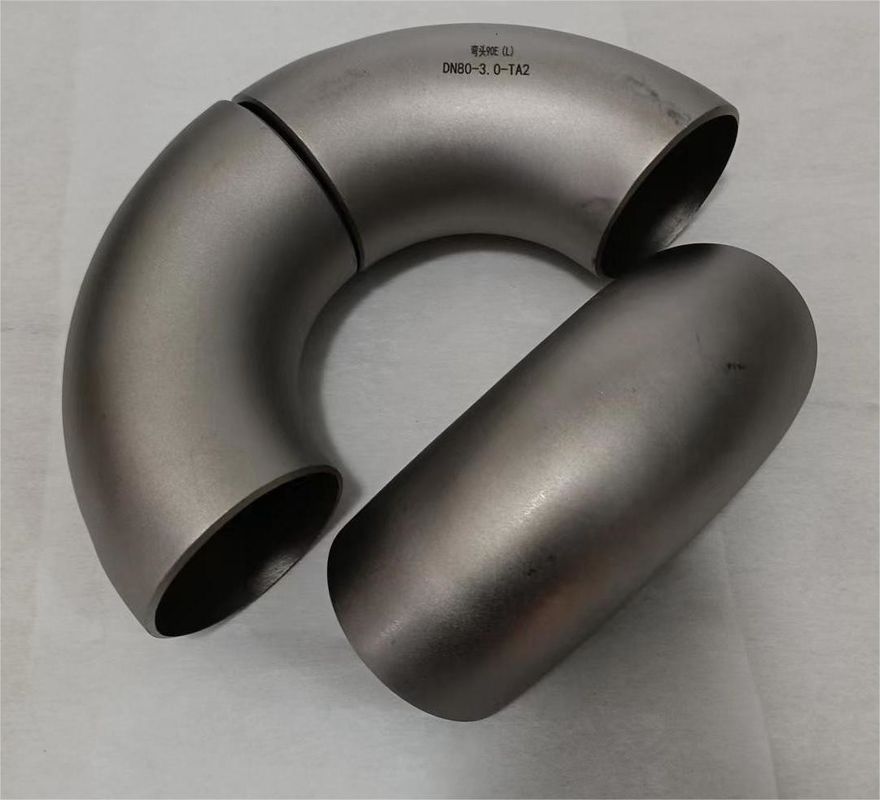

Elbow: Elbow is a common standard pipe fitting in pipelines and equipment, divided by bending radius, R=1DN and R=1.5DN two kinds, in order to distinguish 180°, 135°, 90°, 60°, 45°, 30°, etc., its specifications in DN18-DN200 seamless, DN > 200 for the longitudinal weld elbow.
Standard:ASTM B16.9,SH3408,SH3409,HG/T21635,HG/T21631,SY/T05010
Grade:Grade1 Grade2 Grade7 Grade9 Grade12
Thickness:1-18mm(Sch5s to Sch80s)
Technology:Production methods can be divided into pushing, pressing, forging, casting and so on
Dimension:DN15-1200(NPS:1/2-36 inches)
Craft:Seamless extruded or butt-welded elbows, polishing, lathing, pickling, rolling
Feature:Excellent properties in the medium of acid, alkali and salt, especially Cl- corrosion resistance. Corrosion resistance to sewage, scale will not be deposited on the inner surface of pipe fittings,Low density, high strength, light equipment.
Application: Used in petroleum, chemical industry, electric power, metallurgy, chemical fiber, food, pharmaceutical, chlor-alkali, vacuum salt making, fine chemical industry, biological engineering, seawater desalination, ocean engineering and other industries.
Note:Any oreder,Please state your request in details,Such as :Quantity,Dimension(Length,High,thickness,wideth,or fixed length),Materials,Standard etc.
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
