ASTM B265 Gr9 Titanium Alloy Bar Pure Titanium Bar Mechanical Properties for Demanding Environments

Introduction to Titanium Bars

Titanium alloys are widely recognized as an ideal implant material due to their excellent compatibility with human tissue. Their unique properties make them invaluable in surgical and dental procedures. Titanium alloys are used to create a range of medical devices, including hip and femoral head implants, artificial vertebral bodies, knee and elbow joints, dental fixtures, pacemaker shells, heart valves, and even titanium mesh for cranial reconstruction.

We offer a diverse inventory of medical titanium rods in various sizes, including 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, and 12mm. This extensive stock allows us to meet the urgent delivery needs of our customers, as well as accommodate smaller order requirements.

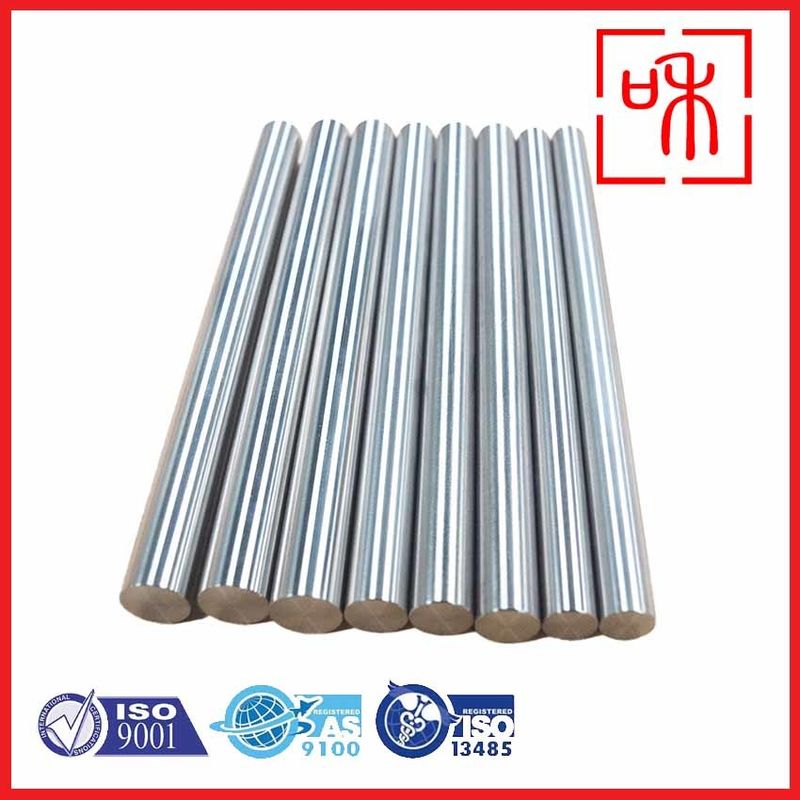

Titanium bars are solid, cylindrical pieces of metal primarily composed of titanium, known for their lightweight yet robust nature. They exhibit exceptional corrosion resistance and a high strength-to-weight ratio, making them suitable for critical applications across various industries. Manufactured through specialized processes that adhere to stringent industry standards, these titanium bars ensure reliability and performance in demanding environments.

In summary, the versatility and biocompatibility of titanium bars position them as a crucial element in the medical field, contributing significantly to advancements in patient care and surgical outcomes. Their availability in multiple sizes allows for flexibility in application, catering to both large-scale and urgent demands.

Introduction to Gr9 Titanium Alloy

Gr9 titanium, also known as Ti-3Al-2.5V, is a prominent titanium alloy primarily recognized for its superior strength-to-weight ratio and corrosion resistance. Composed of 90% titanium, 3% aluminum, and 2.5% vanadium, this alloy offers an exceptional combination of mechanical properties that make it suitable for various demanding applications. It is particularly favored in sectors such as aerospace, marine, and medical due to its lightweight nature and durability. Understanding the characteristics and applications of Gr9 titanium round bars can provide insights into why this material is a popular choice among engineers and manufacturers.

Mechanical Properties and Performance

One of the standout features of Gr9 titanium is its impressive mechanical strength. With a tensile strength of approximately 900 MPa, it offers a significant advantage over traditional materials like steel while maintaining a much lower density. This strength allows for the design of lighter components without compromising structural integrity, which is crucial in industries where weight reduction leads to improved performance, such as aerospace. Additionally, Gr9 exhibits excellent fatigue resistance, making it ideal for applications subjected to repeated stress and strain.

In terms of temperature performance, Gr9 titanium maintains its mechanical properties even in elevated environments. This attribute is particularly beneficial for components that operate under high-temperature conditions, ensuring longevity and reliability. Furthermore, the alloy's low thermal expansion coefficient contributes to its dimensional stability, which is vital for precision-engineered parts. The combination of these mechanical properties makes Gr9 titanium a versatile option for a wide range of industrial applications.

Chemical composition of medical tianium bar:

Grade 9 titanium, also known as Ti-3Al-2.5V, has several important mechanical properties that make it suitable for various applications. Here are the key mechanical properties of Grade 9 titanium bars/rods:

1. Tensile Strength: Approximately 930 MPa (135,000 psi), indicating high strength.

2. Yield Strength: Around 860 MPa (125,000 psi), which provides good resistance to deformation under load.

3. Elongation: Typically around 10-15%, reflecting its ductility and ability to deform before breaking.

4. Modulus of Elasticity: Approximately 113,000 MPa (16,400 ksi), indicating its stiffness.

5. Hardness: Vickers hardness is typically around 300 HV, which demonstrates its resistance to indentation and wear.

6. Fatigue Strength: Grade 9 titanium exhibits good fatigue resistance, making it suitable for cyclic loading applications.

7. Creep Resistance: Maintains mechanical properties at elevated temperatures, providing good creep resistance over time.

Equivalent Grades for Gr 5

Advantages of Grade 9 Titanium Rods

Grade 9 titanium, also known as Ti-3Al-2.5V, offers a unique combination of properties that make it suitable for various applications. Here are the key advantages of Grade 9 titanium rods:

High Strength-to-Weight Ratio: Grade 9 titanium provides excellent strength while remaining lightweight, making it ideal for applications where minimizing weight is critical.

Improved Weldability: Compared to other titanium grades, Grade 9 has better weldability, allowing for easier fabrication and joining processes in complex designs.

Corrosion Resistance: Like other titanium alloys, Grade 9 is highly resistant to corrosion, making it suitable for use in harsh environments, including marine and chemical applications.

Good Fatigue Resistance: Grade 9 titanium exhibits excellent fatigue strength, ensuring durability and reliability in applications that experience cyclic loading.

Biocompatibility: This alloy is biocompatible, making it suitable for medical applications, such as implants and surgical instruments.

Formability: Grade 9 can be easily formed and shaped into various geometries, allowing for versatile design options.

Thermal Stability: It retains its mechanical properties at elevated temperatures, making it suitable for high-performance applications, such as aerospace and automotive components.

Cost-Effective: While not as commonly used as some other titanium grades, Grade 9 can be more cost-effective in certain applications due to its favorable properties and ease of processing.

Low Thermal Expansion: It has a low coefficient of thermal expansion, which helps maintain dimensional stability under temperature fluctuations.

Aesthetic Qualities: Grade 9 titanium can be anodized and colored, providing aesthetic options for consumer products and jewelry.

These advantages make Grade 9 titanium rods a popular choice in various industries, including aerospace, medical, and automotive, where strength, weight savings, and durability are essential.

Technical Parameters:

Manufacturing Processes of Gr9 Titanium Bars

Producing Gr9 titanium round bars involves several advanced manufacturing processes, each aimed at ensuring high-quality and precise specifications. Common techniques include forging, extrusion, and machining. Forging processes enhance the microstructure of the alloy, improving its strength and toughness. By refining the grain structure during forging, manufacturers can produce components that perform exceptionally well under stress.

Extrusion is another popular method used to create titanium round bars, allowing for the production of uniform profiles over long lengths. This method is particularly advantageous for applications that require specific dimensions and shapes. Additionally, machining plays a crucial role in achieving tight tolerances and intricate designs, which are essential for many engineering applications. Together, these manufacturing processes ensure that Gr9 titanium round bars meet the stringent requirements of diverse industries.

Applications of Titanium Bars

Titanium bars are widely used across various industries due to their unique properties, such as high strength, lightweight, excellent corrosion resistance, and biocompatibility. In the aerospace sector, titanium bars are utilized in airframe structures, engine components, and fasteners, significantly enhancing fuel efficiency and flight performance. In the medical field, they are fabricated into orthopedic implants (like screws and plates) and dental implants, and also used for high-strength surgical instruments, making them suitable for long-term implantation in the body due to their biocompatibility.

In marine applications, titanium bars are employed in components such as propellers, shafts, and fittings for boats and submarines, providing resistance to saltwater corrosion. In the chemical processing industry, they are used in pipes and tanks for handling corrosive substances, greatly extending the lifespan of the equipment. Additionally, in the automotive industry, titanium bars are found in high-performance parts like exhaust systems and chassis components, contributing to weight reduction and improved fuel efficiency.

In sports equipment, they are used in high-end bicycles, golf clubs, and other gear where strength and lightweight are critical. Titanium bars also play a role in construction and architecture, serving as structural components and decorative elements, appreciated for their aesthetics and strength. In the energy sector, they are applied in offshore drilling equipment and pipelines in the oil and gas industry, as well as in components for wind turbines and solar panel mounts in renewable energy. Overall, the applications of titanium bars are expanding across multiple industries, and their potential continues to grow with advancements in technology.
