Place of Origin:
Xi'an,China
Brand Name:
FHH
We can supply a broad selection of titanium sheets and plates for fabrication and engineering applications. Sheets can be cut precisely according to your needs and are available in a variety of surface finishes. We adhere to the following production standards: ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860.
The titanium grades we offer include Gr1, Gr2, Gr10 or 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), and so on.

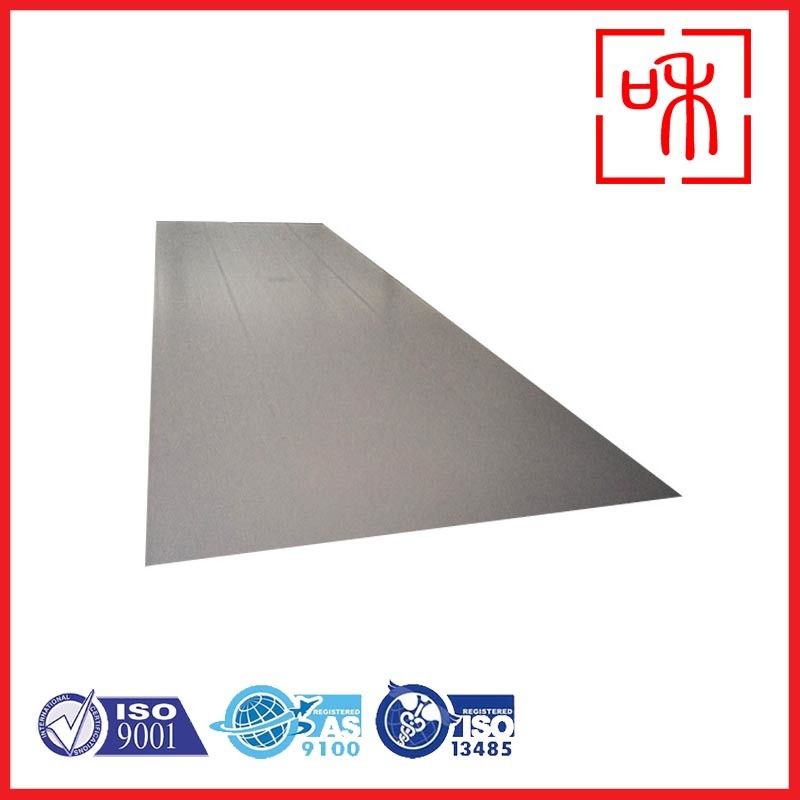

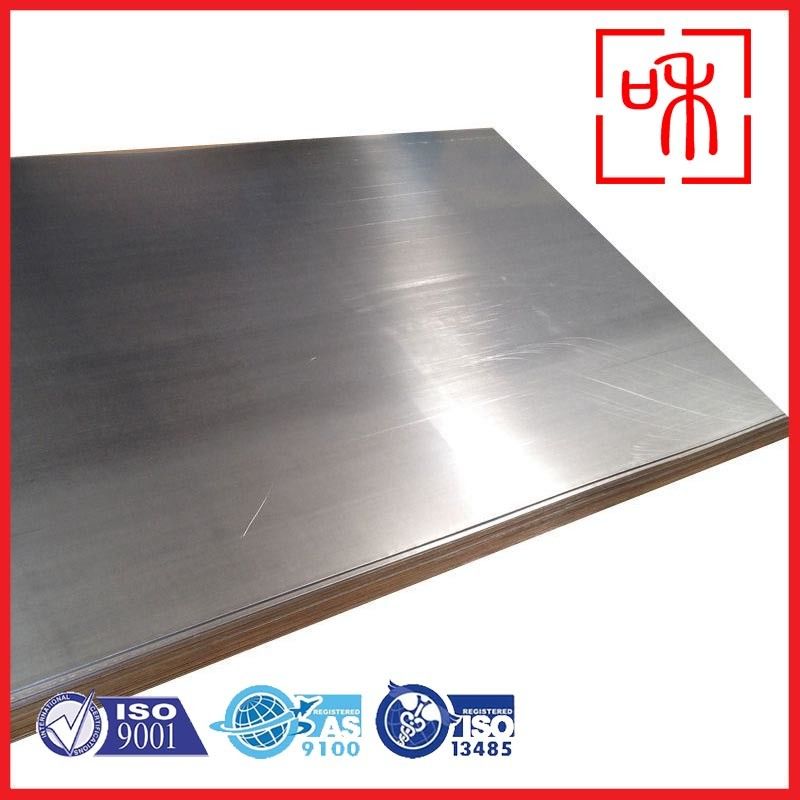

Titanium Sheet and Plate
We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.
Production Standards:
Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.
Titanium Grades:
Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.
Titanium Sheet Surface Finishes:
Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.
| Apart from the products listed below, other available metal products are not listed here. Other metal products USTi can manufacture and supply include Tantalum, Niobium, Zirconium, Hafnium, Nickel, Copper etc., which are mainly in the form of Plate, Bar and Tube. | |||
| Products | Processing Standard | Grade | Size |
| Titanium Plate, Sheet, Coil | ASME SB265, AMS 4911, AMS 4919, AMS 4914 ASTM F67, ASTM F136 |
GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR12, GR16, GR17, GR23, Ti-6Al-4V ELI, Ti-6-2-4-2, Ti-15-3-3-3 |
Thickness: (0.0197”-6”) Max Width: 12 feet Max Length: 50 feet |
|
Titanium Foil |
ASME SB265 |
GR1, GR2, GR5
|
(0.001”-0.004”) x 4.8” x coil (0.004”-0.01”) x 18” x coil (0.012”-0.0158”) x 48” x coil |
Titanium Plates, produced by FHH from Xi'an, China, are available in a minimum order quantity of 200kgs and are packed for seaworth shipment materials for delivery within 5-8 days. Payment options such as L/C, D/P, T/T are accepted, and the supply ability is 1000pcs/month. The product has excellent corrosion resistance and meets standards such as ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, DIN 17860, GB, JS. The technology used in its production is either cold rolling or hot rolling, and it offers high resistance to heat. Its surface can be polished, milled, pickled, painted, brushed, or blasted.
Titanium Plate provides technical support and service to its customers through a comprehensive range of support options.
Customers can access technical support and service by contacting Titanium Plate's customer service team directly. Our team is available to answer any questions or concerns, provide product and technical support, and provide helpful guidance. Our team can be contacted by phone, email, or live chat.
In addition, Titanium Plate provides customers with online access to product and user guides, tutorials, frequently asked questions, and access to our knowledge base. This helps customers quickly and easily find solutions to their questions or issues.
We also provide customers with access to our online forums. Here customers can discuss product features, ask questions, and offer feedback. Our forums are moderated by our team to ensure customers receive the support they need.
Packaging and Shipping for Titanium Plate:
Titanium plate will be packaged in shrink-wrapped pallets with cardboard separators to ensure the product is not damaged during shipping. The pallets will then be shrink-wrapped and secured with plastic straps to ensure the product is even more secure. The pallets will then be loaded onto a truck or freight train for shipping to the desired location.
GR7 titanium, also known as Ti-0.2Pd, is a high-performance alloy that combines the lightweight and strength characteristics of titanium with enhanced corrosion resistance due to the addition of palladium. This specific alloy is particularly valued in industries such as chemical processing, aerospace, and marine applications, where exposure to harsh environments is common. The combination of titanium and palladium not only improves the material's durability but also enhances its overall performance, making it an ideal choice for demanding applications. With a focus on quality and efficiency, manufacturers are increasingly turning to GR7 titanium alloy sheets to meet their operational needs.
Cold rolling is a manufacturing process that imparts specific properties to titanium sheets, including enhanced strength and improved surface finish. During cold rolling, the material is passed through rollers at room temperature, which refines its microstructure and increases tensile strength without compromising ductility. The result is a sheet that is not only stronger but also has a smoother surface compared to hot-rolled equivalents. This improved surface quality is especially important in applications where cleanliness and aesthetics matter, as it minimizes the potential for contaminant accumulation.
In addition to strength and surface finish, cold rolled GR7 titanium sheets exhibit excellent dimensional accuracy, making them suitable for precision applications. The tight tolerances achieved during the cold rolling process allow for better fitting and assembly in complex structures, which is critical in industries where safety and performance are paramount. The enhanced mechanical properties of cold rolled GR7 titanium sheets further expand their applicability in various fields, ensuring they can withstand high stress and fatigue loads.
The polished surface finish of GR7 titanium alloy sheets offers numerous advantages, particularly in the chemical industry. A polished finish reduces the likelihood of contaminant buildup, which is crucial in maintaining the purity of processed materials. In environments where even minor impurities can lead to significant issues, such as product contamination or equipment failure, a smooth surface helps mitigate these risks. Additionally, the polished surface enhances the aesthetic appeal of the material, making it suitable for applications where appearance is important.
Another significant benefit of a polished surface is the enhancement of corrosion resistance. Imperfections like pits or scratches can serve as initiation points for corrosion, potentially leading to premature failure of components. By ensuring a polished finish, manufacturers can reduce the risk of localized corrosion and extend the lifespan of their products. Moreover, polished surfaces facilitate easier cleaning, which is essential in sectors such as pharmaceuticals and food processing, where hygiene standards must be strictly maintained.
GR7 polished alloy titanium sheets are utilized across a wide range of applications due to their superior properties. In the chemical processing industry, these sheets are often employed in the manufacture of heat exchangers, reactors, and piping systems that transport aggressive chemicals. Their exceptional resistance to acids and chlorides makes them ideal for environments where traditional metals would corrode rapidly. By leveraging GR7 titanium, companies can significantly enhance the durability and reliability of their equipment, ultimately leading to reduced downtime and maintenance costs.
In addition to chemical processing, GR7 titanium sheets are also used in aerospace applications, where weight savings and strength are critical. Components such as airframe structures, engine parts, and fasteners benefit from the lightweight nature of titanium, which contributes to overall fuel efficiency and performance. The ability of GR7 titanium to withstand extreme temperatures and pressures further underscores its suitability for aerospace applications. As the demand for higher efficiency continues to grow, the role of GR7 titanium in aerospace is likely to expand.
The production of GR7 polished alloy titanium sheets involves several critical steps to ensure compliance with industry standards and customer specifications. The process begins with the careful selection of high-quality raw titanium, followed by melting and alloying to achieve the desired composition. Once the alloy is prepared, it undergoes cold rolling to produce sheets of the required thickness. Throughout this manufacturing process, strict quality control measures are implemented to monitor for defects and ensure optimal mechanical properties.
After the cold rolling process, the sheets are subjected to a polishing treatment that enhances their surface finish. This can involve grinding, buffing, and using chemical treatments to eliminate imperfections and create a smooth, reflective surface. Rigorous testing follows the polishing process to verify compliance with ASTM standards, ensuring that the sheets maintain their mechanical and corrosion-resistant properties. By adhering to stringent quality control protocols, manufacturers can deliver GR7 titanium sheets that meet or exceed customer expectations.
As industries increasingly prioritize sustainability, the use of GR7 titanium alloy sheets aligns well with these goals. Titanium is known for its longevity, which translates into reduced waste and lower environmental impact over time. The durability of GR7 titanium means that components made from this material can last significantly longer than those made from conventional metals, reducing the frequency of replacements. Additionally, the lightweight nature of titanium contributes to energy efficiency in transportation applications by lowering fuel consumption.
Looking ahead, the demand for GR7 polished alloy titanium sheets is expected to grow as more industries recognize the benefits of advanced materials. Innovations in manufacturing processes and alloy compositions will likely expand the scope of applications for GR7 titanium, enabling it to meet the evolving needs of various sectors. As technology advances and industries seek out sustainable solutions, GR7 titanium will play a crucial role in shaping the future of material science.
In conclusion, straight GR7 polished alloy titanium sheets offer exceptional performance and versatility across multiple industries. Their unique combination of strength, corrosion resistance, and aesthetic appeal makes them a preferred choice for demanding applications in the chemical and aerospace sectors. The cold rolling process not only enhances the material's mechanical properties but also ensures that it meets stringent quality standards. As industries continue to prioritize sustainability and efficiency, the role of GR7 titanium alloy sheets will undoubtedly become more prominent, paving the way for innovative solutions in engineering and manufacturing.
